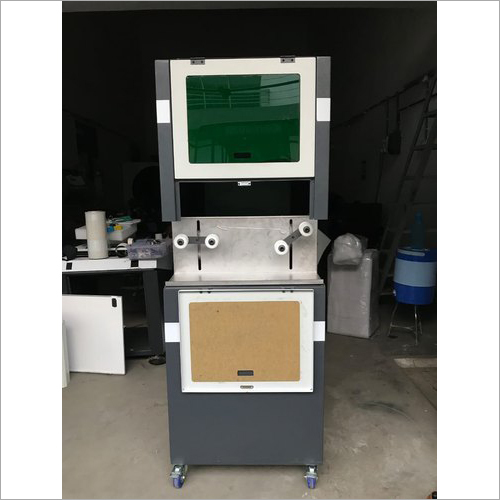

Marking Machine

Product Description

This is high performance fiber laser marking machine, It integrated advanced imported laser source and high quality galvo scanning system as one. It offers steady laser power output, perfect optical mode, good beam quality and fast marking speed, these advantages satisfied with customers demands towards perfect effect and high efficiency, which can fulfill massive production

It is widely used in the industries of mobile phone keys, translucent plastic components, IC, electrical appliances, communication products, sanitary ware, tool parts, knives, watches, glass, jewellery, auto accessories, cooking utensils, stainless steel products, etc.

Quality:

The beam quality is extremely high, and it allows marking at a higher frequency then allowed by the traditional technology and with smaller details thank to the good control of all parameters.

Efficiency:

Due to a good matching between laser pump and cavity design, the electric power demanded by the system is 5-10% less than that required by the traditional lasers. Furthermore, cooling is yielded by a small built in system so that noise and size are reduced

Power stability:

The output parameters can be selected by the operator; he can choose average power from zero to the highest value, and pulse repetition frequency. The laser beam spot size, thanks to the dynamic modification of the working distance and marking filed, can vary accordingly. This enables to change the laser beam quality and to yield markings with different spot sizes.

Compact Size: It is smaller than that of the traditional sources.

Scan head with galvo motors

Maximum working area up-to 300X300mm

Speed up-to 600-1000Charecter/Sec., fastest in all segment

Laser Source average life 100000 working hours

Average Output Power: 20W - 100W,

Laser Type: Fiber Laser,

Linear Speed: 10,000mm/sec,

Marking Area: 175X175mm (100*100mm, 150*150mm, 300*300mm Optional),

Wavelength: 1064 +/- 2nm,

Beam Deflection: High speed Galvanometer,

Min Character Height: 0.2mm,

Marking Depth: 0.04mm (depending  on materials),

Min Linear Width: 0.01mm,

Power Supply: AC 220V 50KHz,

Supported Format: PLT, DXF, BMP, VECTOR etc.
